Specifications:
| General Product Information | |
Outlet flange connection | 11/4"BSPP (orG11/4")female thread |
Inlet flange connection | 11/4“ BSPP (or G1-1/4”) female thread |
Cooling method | Air-cooled |
Height | 0.264 m |
Length | 0.480 m |
Width | 0.320 m |
IP protection rating | IP55-F |
Leakage rate | 1.000 x 10⁻⁴ Pa·m²/s |
Noise level | 60.00 dB(A) |
Power frequency | 50 Hz |
| 60 Hz | |
Power phase | 3-phase |
Weight | 52.00 kg |
Dimension Notes | The dimensions for length, width, and height are intended to describe the typical orientation of the product when placed on the ground. We always recommend checking the detailed dimensions provided in the 2D drawings in the user manual or the 3D geometry provided in the 3D model. |
Inlet/Outlet Flange Connections | 1-1/4“ BSPP (or G1-1/4”) female thread | 1-1/4“ BSPP (or G1-1/4”) female thread |
Product Certification | RoHS |
| Lubricants | |
Default oil type | LEYBONOL LVO 130 |
| Performance Data | |
Water vapor capacity | 2.778 × 10⁻⁴ kg/s |
| 2.778 × 10⁻⁴ kg/s | |
Total rated power | 1800.00 W |
Total rated power @ 50 Hz | 1800.00 W |
Total rated power @ 60 Hz | 1800.00 W |
Limit pressure | 50.00 Pa |
Maximum steam pressure | 3000.00 Pa |
| 3000.00 Pa | |
Pumping speed for air and nitrogen (@50 Hz or max @ default | 0.015 m²/s |
Pumping speed for air and nitrogen at 50 Hz | 0.015 m²/s |
Pumping speed for air and nitrogen at 60 Hz | 0.020 m²/s |
| Environmental Conditions | |
Maximum operating temperature | 40.00 °C |
Minimum operating temperature | 12.00 °C |
| Classification | |
Classification of dry or wet pumps | Wet |
Product pressure range: Rough vacuum | 1000 mbar – 1 mbar |
Classification of high vacuum/medium vacuum/rough vacuum pumps | Rough vacuum pump |
Vacuum pump technical classification | Single-stage oil-lubricated vane pump |
Product Description:
Oil Rotary Vane Pumps Single-Stage
The SOGEVAC vacuum pumps are single stage oil sealed rotary vane pumps, one of the main Leybold products! Leybold is proud of its over 175 years of experience and SOGEVAC exist for over 40 years. SOGEVAC benefit of latest developments in pump technology and regular product portfolio renewal. The comprehensive range allows every customer to select the right pump for his particular needs. SOGEVAC stands out for reliability and sustainability and provides years of exceptional performance.
SOGEVAC B
The SOGEVAC B series of rotary vane vacuum pumps is setting new standards and offers following major characteristics such as compact design and small footprint, better ultimate pressure, very low and constant noise level in any working condition, more integrated functions, improved variant concept and specific customer configurations as well as simplified maintenance. Optimized lubrication and temperature profile allows trouble free operation also in harsh conditions while keeping unrivalled uptime. SOGEVAC B stands out with very high energy efficiency, low and nice noise level and extremely low oil carry over.

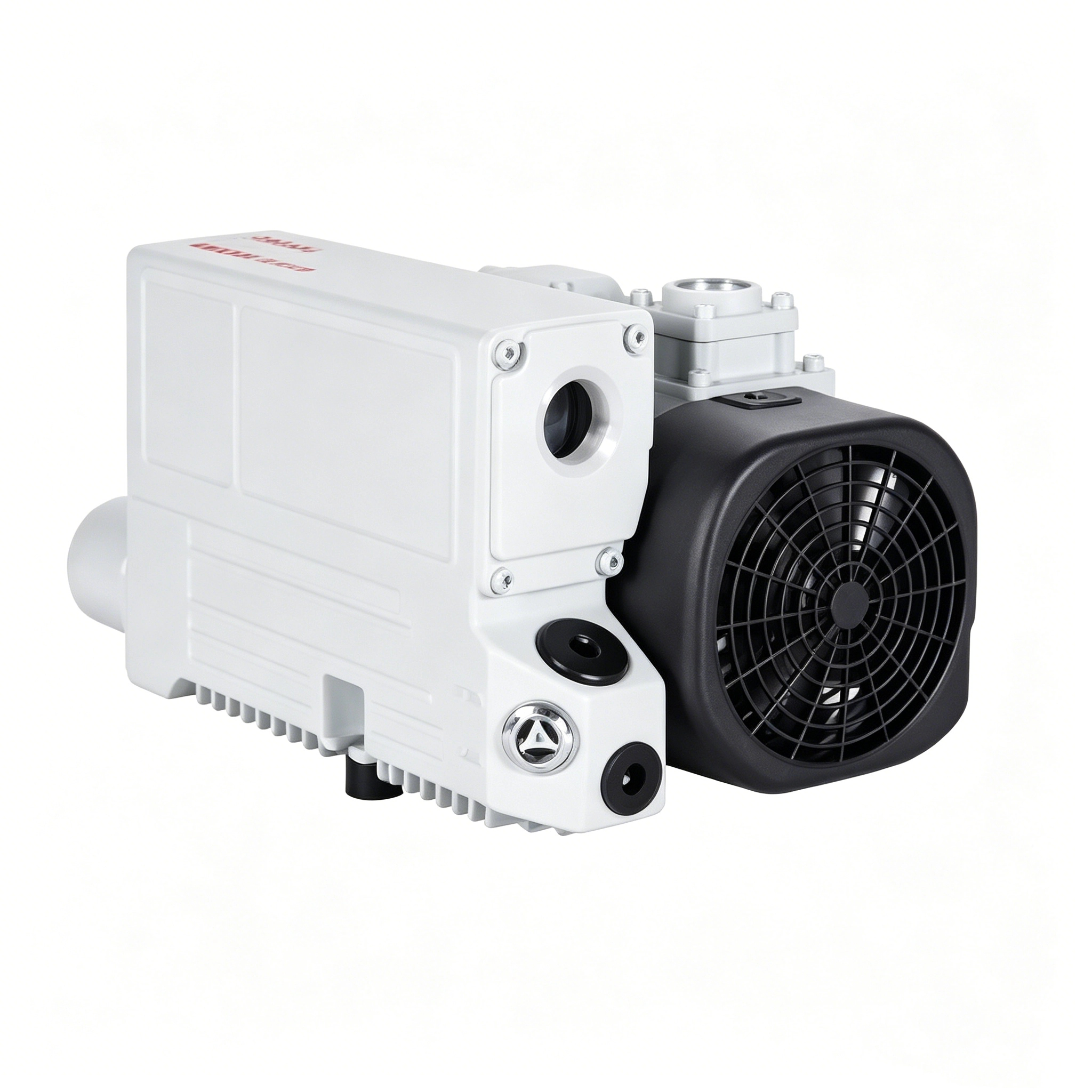

SOGEVAC SV 65 B
The SOGEVAC 65 B is widely used in many different applications. Continuous operation at all pressures possible. Many available accessories for protection & monitoring. Different oils and gas ballast sizes allow a best fit for a given application. A very compact pump for its performance thanks to the integrated motor!
Features and Benefits
Many available oils, gas ballast types & sizes, motors
Fit for difficult applications
Very compact: easy to integrate and small footprint
Variants for oxygen pumping > 23.5 %
