Specifications:
| General Product Information | |
Connection to the outlet flange | 11/4" BSPT (Rc) female thread |
| 11/4" NPT female thread | |
Inlet flange connection | 11/4" BSPT (Rc) female thread |
| 11/4" NPT female thread | |
Cooling method | Air-cooled |
Height | 0.538 m |
Length | 0.915m |
Width | 0.409 m |
IP rating | IP54 |
Noise level | 72.00 db(A)/72.00 db(A) |
Power frequency | 60 Hz |
Power phase | 3-Ph |
Power voltage | 3Ph 380V 60Hz |
Weight | 182.00kg |
Dimension Notes | The dimensions for length, width, and height are intended to describe the typical outline of the product when standing on the ground. We always recommend checking the detailed dimensions provided in the 2D drawings in the user manual or the 3D geometry provided in the 3D model. |
Inlet/Outlet Flange Connection | 1-1/4“ BSPT (Rc) Female Thread | 1-1/4” BSPT (Rc) Female Thread |
Motor Efficiency Class | IE3 |
Certified Motor | EC |
| RoHS | |
| Lubricants | |
Default oil type | GL+Xpand 150 |
| Performance Data | |
Total rated power | 3700.00 W |
Total ratedpower@50Hz | 3700.00 W |
Maximum pressure | 5000.00 Pa |
Rated rotational speed at 60 Hz | 58.67 Hz |
Maximum airflow @ 50 Hz | 0.042 m²/s |
Maximum airflow @ 60 Hz | 0.051 m²/s |
Product Description:
Dry Claw Pumps
Dry claw vacuum pumps are positive-displacement pumps that use two claw-shaped rotors to capture and compress gas, thereby creating a vacuum. These pumps are oil-free, ensuring clean, maintenance-free operation.

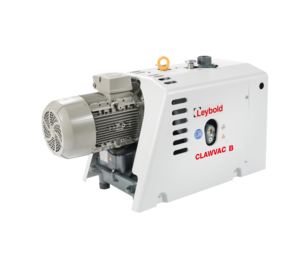

CLAWVAC B
Leybold Vacuum’s CLAWVAC B series is a range of robust and efficient oil-free dry claw pumps designed for demanding industrial applications. Featuring stainless steel claws and corrosion-resistant pump chambers, these pumps are ideal for handling gases contaminated with particles and vapors.
Features and Benefits
Harshest Applications Ready - Built-in corriosion resistance
Completely cleanable
Segregated gearbox design avoids oil contamination of the process
Cooled and designed to guarantee the highest uptime
